Product Description

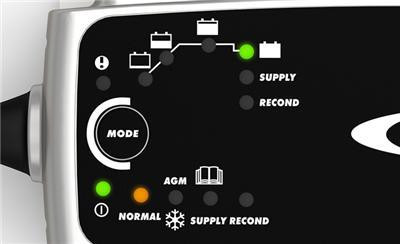

The MXS 7.0 is the perfect universal 12V charger. It is ideal for charging larger batteries such as caravan, RV, boat and car batteries. These types of vehicles often demand features that can solve a broad range of battery-related problems. The MXS 7.0 offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging, a mode for optimised charging during cold winter days and the charging of demanding AGM batteries (i.e. Optima). It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations.
The MXS 7.0 is a fully automatic 8-step charger that delivers 7A to 12V batteries from 14-150Ah and is suitable for maintenance charging up to 225Ah. The charger is IP 65 classified (splash and dust proof), designed to protect vehicle electronics and non-sparking, reverse polarity protected and short-circuit proof. It is delivered with a 5-year warranty.
Technical Summary:
- Auto: Fully automatic for optimal charging
- 12V: For all lead-acid batteries, for fully charged battery / maintenance charging
- COLD/AGM: Charging in cold conditions and AGM batteries
- RECOND: Recondition of deeply discharged batteries
- SUPPLY: Use the charger as a power supply
Technical Specification:
- Model number: 1053
- Volt: 12V
- Rated Voltage: AC 220-240VAC, 50-60Hz
- Charging voltage: NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V, SUPPLY: 13.6V
- Min battery voltage: 2.0V
- Charging current: 7A max, current, mains: 1.2A rms (at full charging current)
- Back current drain: <1Ah/month
- Ripple: <4%
- Ambient temperature: -20°C to +50°C, output power is reduced automatically at high temperatures
- Charger type: 8 step, fully automatic charging cycle
- Battery types: All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
- Battery capacity: 14-150Ah up to 225Ah for maintenance
- Dimensions: 191 x 89 x 48mm (L x W x H), weight: 0.8kg
- Insulation class: IP65
- Weight: 0.8kg
