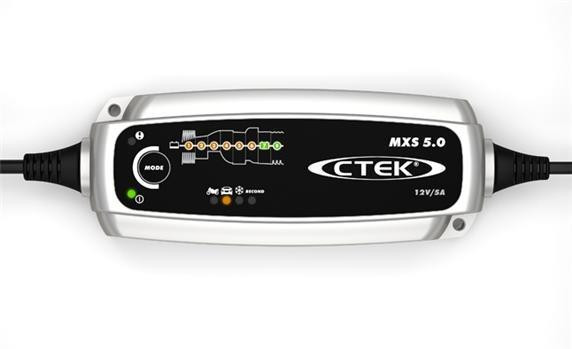

Product Description
Fully automatic 5 year warranted conditioner for larger batteries, for optimal charging of 12V lead-acid batteries.

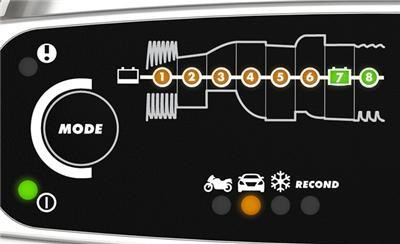

Charging modes: Step 7: Fully charged battery, then moves to Step 8, Maintenance charging
COLD mode/AGM mode: Charging in cold conditions and AGM batteries, reconditions deeply discharged batteries
Technical Specification:
Model number: 1049, Volts 12V
Rated Voltage: AC 220–240VAC, 50–60Hz
Charging voltage: SMALL, NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V
Min battery voltage: 2.0V
Charging current: 5A max
Current, mains: 0.65A rms (at full charging current)
Back current drain: <1Ah/month
Ripple: <4%
Ambient temperature: -20°C to 50°C, output power is reduced automatically at high temperatures
Charger type: 8 step, fully automatic charging cycle
Battery types: All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity: 1.2–110Ah up to 160Ah for maintenance
Dimensions: 168 x 65 x 38mm (L x W x H)
Insulation class: IP65
Weight: 0.6kg
