Product Description
Revolutionary adaptive battery charger and maintainer for Lithium Ion batteries up to 180aH. This is a larger capacity that the CTEK Lithium XS unit which charges only to 70aH.
APTO™ Technology automatically recognises the type of battery you’re using, and then automatically delivers a customised charging program, telling you how long until the battery is charged and ready to go. No buttons to press or modes to select – just connect the CS ONE to any 12V battery and simply charge. Polarity free clamps mean you don’t even need to worry about which clamp goes where, so you’ll never make a wrong connection again. The clamps are spark free too, so don’t worry if you accidentally touch them together. Unlock additional features using the Bluetooth® enabled CTEK App. Select ‘RECOND’ to restore and recondition your battery. Choose ‘WAKE UP’ for lithium batteries with under voltage protection or to bring deeply discharged lead-acid batteries back to life. Select ‘SUPPLY’ to turn the CS ONE into a useful 12 V supply. You can also monitor the voltage and amps being delivered by the charger.
Features
- RECOND option to restore and recondition lead-acid batteries.
- WAKE UP option to revive seemingly dead lithium and lead-acid batteries.
- 12V SUPPLY to support the battery during service work and retain contact power to the vehicle during battery replacement / removal.
- ADVANCED SETTINGS to monitor charger voltage & amperage.
- Can be left safely connected for long periods during maintenance charging.
- New durable design to make it easy to handle, with unique mounting system on the back for quick connection to CS accessories.
- 5 year warranty.
Technical data
- Input
- 220–240 VAC, 47–63 Hz, 1.2 A
- Output
- 12 V, 8.0 A
- Battery capacity
- 3–180 Ah
- Battery capacity CEC-400
- 3–180 Ah
- Charging category
- AC charging
- Back current drain*
- Corresponding to less than 1.5 Ah/month
- Battery voltage
- 12 V
- Battery chemistry
- Lead acid; Lithium-ion
- Ambient operating temperature
- -30 °C to +50 °C
- Cooling
- Natural convection
- Start voltage
- 1.5 V lead-acid battery types. 1.5 V LiFePO₄.
- Frequency
- 50 Hz
- Ripple**
- Less than 4 %
- Connectivity
- BLUETOOTH® LE 5.1
- Battery types
- 12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄
- Temperature compensation
- Built in charge voltage compensation according to ambient temperature.
- Compliance
- ETSI EN 300 328; RED; EN 61000-6-3; EN 61000-6-1; ETSI EN 301 489-1; ETSI EN 301 489-17; EN 60 335-2-29; EN 60335-1; SS-EN ISO 13732-1:2008
- Enclosure material
- Plastic
- Rated voltage (Input)
- 230 V
- Degree of protection
- IP65
- Mains cable length (input)
- 1.4 m
- App support
- CTEK App for Android and IOS
- Dimensions (L x W x H)
- 235 x 88 x 52 mm
- Net weight (unit with cables)
- 0.675 kg
- User interface
- LED symbols; Smartphone display (free of choice)

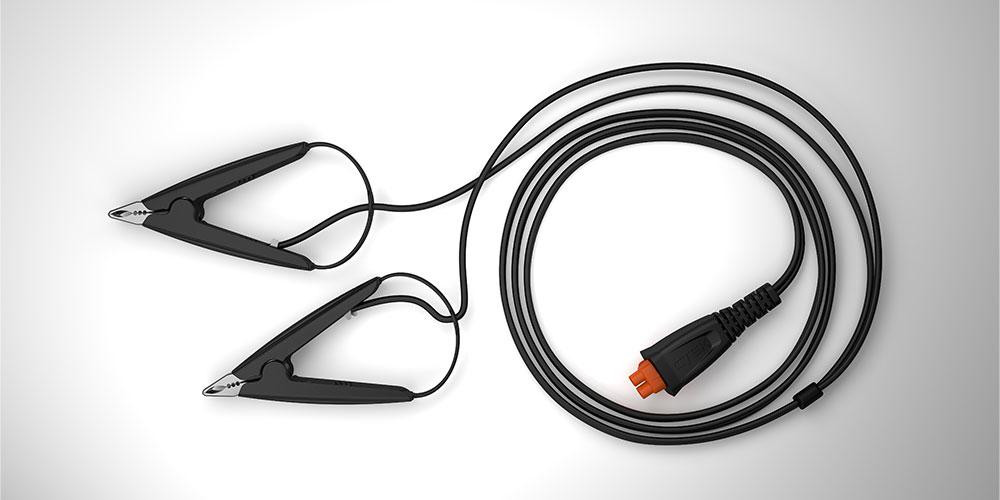

- Detachable charging cable length (ouput)
- 2 m
- Packaging size (L x W x H)
- 288 x 178 x 55 mm
- Warranty
- 5 years
- Power plug type
- Type G
